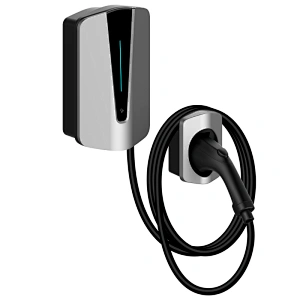

11kW Type 2 Smart Wallbox EV Charger

This 11kW Type 2 wallbox EV charger is an intelligent AC charging solution for electric vehicles, suitable for residential, commercial and parking applications. Supporting single-phase and three-phase AC power input and output, it provides charging power of up to 11kW for convenient everyday EV charging.

The charger supports multiple smart control options, including Swipe-to-Start, App control and remote appointment charging. RFID authentication is available for convenient and controlled charging access, while optional 4G, Wi-Fi, Bluetooth and RJ45 connectivity provides flexible communication and remote management.

With IP66 ingress protection and integrated AC 6mA + DC 6mA residual current detection, the wallbox is designed for reliable outdoor and indoor operation. Optional LED indicators or a 4.3-inch display make charging status easy to monitor.

Features

• Intelligent Control: Swipe-to-start, App control, remote appointment charging
• Ingress Protection:IP66
• RCD: AC 6mA + DC 6mA
• Connectivity: Optional 4G, Wi-Fi, Bluetooth, RJ45
• Charging Power: Up to 11kW

Parameters

• Input Voltage:
  • Single-phase: AC230V 50/60Hz (L+N+PE)
  • Three-phase: AC400V 50/60Hz (L1+L2+L3+N+PE)
• Input Current: AC16A / AC32A
• Output Voltage:
  • Single-phase: AC230V 50/60Hz (L+N+PE)
  • Three-phase: AC400V 50/60Hz (L1+L2+L3+N+PE)
• Output Current: AC16A / AC32A
• Start-up Mode: Plug-and-Play, RFID Reader
• Display: Optional LED, 4.3-inch Screen
