Battery tester

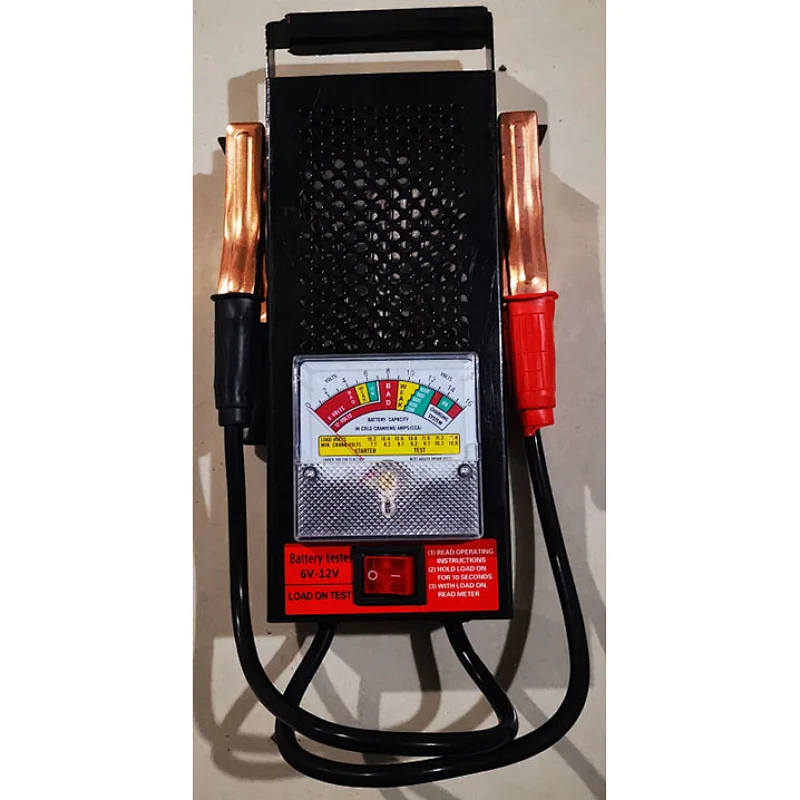

The 6V/12V Battery Load Tester with 0-16V Meter is designed for checking automotive batteries under load while providing a direct voltage reading through its built-in display meter. Supporting both 6V and 12V battery systems, this tester provides a practical solution for battery service, maintenance, and diagnostic applications.
The unit has a load test capacity of 100 amps and supports testing batteries with cold-cranking ratings from 200 to 1000 cold-cranking amps. For battery capacity, it is specified for 12V batteries below 100Ah and 6V batteries below 50Ah. This makes the tester suitable for checking a range of automotive battery applications within its specified operating range.
The integrated display meter has a maximum indication range of 0-16VDC, allowing users to observe battery voltage during the testing process. The combination of load testing and voltage indication provides more useful diagnostic information than a basic voltage-only tester.
This model can be considered for automotive workshops, battery retailers, service centers, automotive parts distributors, and maintenance applications. Its 6V/12V compatibility, 100A load capacity, and 0-16VDC meter provide a clearly defined position within a professional battery testing product range.
Specifications
- Battery Test Voltage: 6V / 12V
- Load Test Capacity: 100A
- Cold-Cranking Amps: 200-1000A
- Battery Capacity: 12V <100Ah; 6V <50Ah
- Display Meter: 0-16VDC (maximum)
- Meter Indicator: Yes
