Battery tester

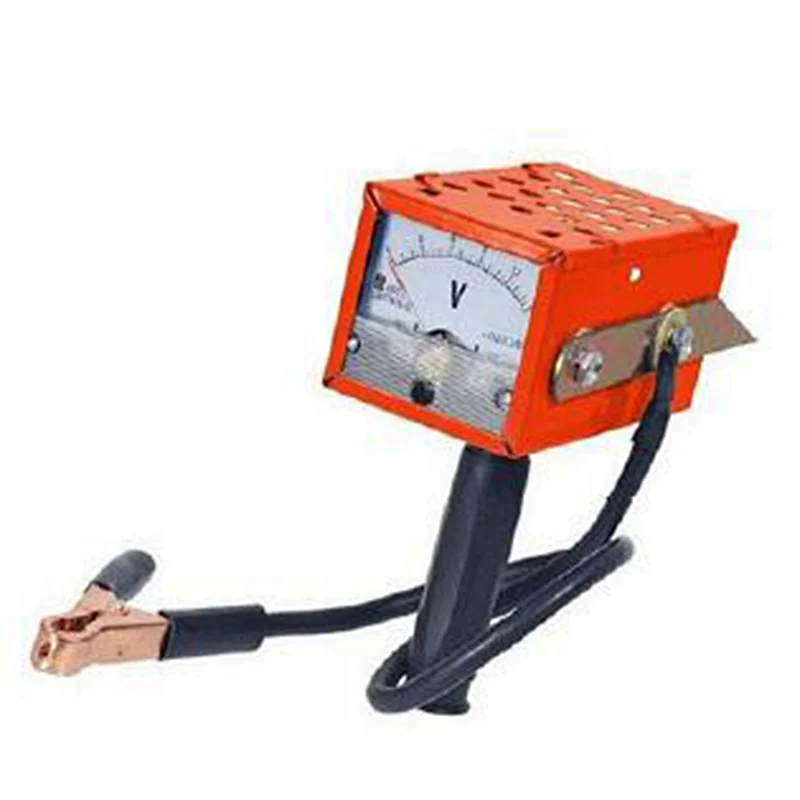

The 125A 12V Battery Load Tester with 0-15V Meter is designed for practical load testing of 12V automotive batteries. With a load test capacity of 125 amps, this model provides a straightforward solution for checking battery performance under load within its specified application range.

The tester is suitable for 12V batteries with a capacity below 120AH and supports batteries rated from 500 to 1000 cold-cranking amps (CCA). Load testing provides a practical method of evaluating how a battery performs when subjected to a defined electrical load, making it useful for routine battery inspection and maintenance.

A built-in display meter with a maximum range of 0-15V allows users to observe battery voltage during the testing process. The meter provides a simple way to monitor voltage while the load test is being performed, helping users obtain a more useful indication of battery performance than an unloaded voltage check alone.

The tester is suitable for automotive workshops, battery retailers, service technicians, and vehicle maintenance applications. Its straightforward design makes it useful for routine battery checks without the complexity of advanced electronic diagnostic equipment.

Unlike battery analyzers that calculate CCA, internal resistance, state of charge, or state of health, this model focuses on direct load testing. Its 125A load capacity, 500-1000 CCA application range, and 0-15V display meter give it a specific position within a wider battery tester product range.

This model can be used as a practical workshop tool for battery inspection, maintenance, and preliminary assessment of 12V automotive batteries.

Specifications

• Application: 12V Battery Test
• Load Test Capacity: 125 amps
• Cold-Cranking Amp Range: 500 to 1000 CCA
• Battery Capacity: 12V <120AH
• Display Meter: 0-15V (max)
