Battery tester

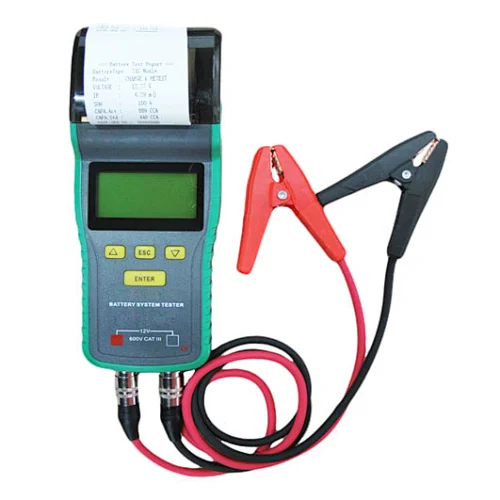

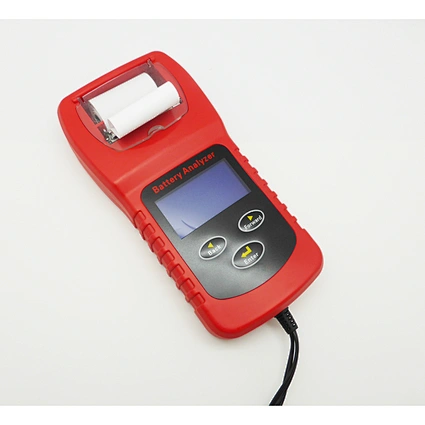

The 40-2000 CCA Battery Analyzer with Thermal Printer is a multifunctional diagnostic tool designed for testing automotive batteries and vehicle starting and charging systems. Its integrated thermal printer allows test reports to be printed directly after testing, making the unit particularly suitable for automotive workshops, battery service centers, and professional maintenance applications where test results may need to be recorded or provided to customers.

The analyzer supports 12V and 24V vehicle systems and has a wide input voltage range of 1.5V-30V. Its testing range covers 40-2000 CCA, while the supported test standards include CCA, DIN, IEC, EN, SAE, and CA. The unit is designed for AGM, GEL, and SLI batteries with a capacity range of 5-250Ah.

Test results include battery voltage under load and without load, starting and charging current inside the vehicle, state of health, state of charge, and internal battery resistance. This combination provides a broader diagnostic function than a basic voltage tester or conventional load tester.

With its wide testing range, multiple test standards, 12/24V vehicle system compatibility, and integrated thermal printer, this battery analyzer offers a clearly differentiated position within a professional battery testing product range.

Specifications

• Integrated Thermal Printer: Yes
• Battery Voltage: 6/12V (12/24V vehicle system)
• Input Voltage Range: 1.5V-30V
• Testing Range: 40-2000 CCA
• Test Standard: CCA, DIN, IEC, EN, SAE, CA
• Battery Type: AGM / GEL / SLI
• Battery Capacity: 5-250Ah
• Test Result:
  • Voltage: Load Test / Unloaded Test
  • Starting and Charging Current Inside the Vehicle
  • State of Health / State of Charge
  • Internal Resistance of Battery
