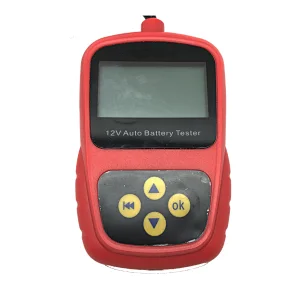

Battery tester
The 12V Battery Diagnostic Analyzer 100-800CCA is designed for comprehensive testing of 12V automotive batteries and vehicle electrical systems. It provides a practical diagnostic solution for checking battery voltage, starting and charging performance, battery condition, and internal resistance.
With a testing range of 100-800CCA, this battery diagnostic analyzer is suitable for batteries with a capacity of 30-100AH. It supports AGM, GEL, and SLI battery types, allowing the same tester to be used for several common automotive battery technologies.
The tester supports multiple battery testing standards, including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB. This multi-standard capability makes the unit suitable for different battery specifications and markets where various testing standards may be required.
The test results provide several useful diagnostic readings. Users can check voltage through charging, load, and unloaded tests, while the tester can also evaluate the starting and charging current inside the vehicle. In addition, it provides information about the state of health, state of charge, and internal resistance of the battery.
With an input voltage range of 6V-30V and compatibility with a 12V vehicle system, the tester is suitable for automotive workshops, battery retailers, service centers, and vehicle maintenance applications. Its combination of battery condition testing and vehicle charging-system diagnosis makes it more functional than a basic voltage tester or simple load tester.
Specifications
- Battery Voltage: 12V (12V vehicle system)
- Input Voltage Range: 6V~30V
- Testing Range: 100-800CCA
- Battery Capacity: 30-100AH
- Test Standard: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
- Battery Type: AGM/GEL/SLI
- Test Result:
- Voltage: charging/load test/unloaded test
- Starting and charging current inside the vehicle
- State of health/state of charge
- Internal resistance of battery
