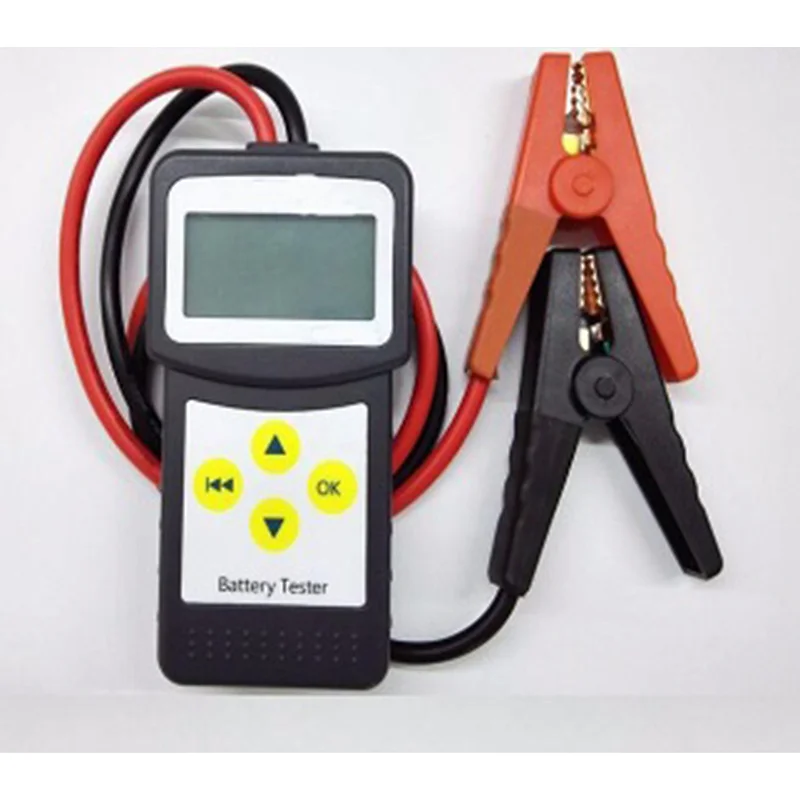

Battery tester
The Professional 12V/24V Battery Diagnostic Tester is designed for detailed testing of automotive batteries and vehicle electrical systems. With a testing range of 100-2000CCA and support for 12V and 24V vehicle systems, this model is suitable for a wider range of automotive battery applications, including passenger vehicles and larger vehicles.
The tester supports batteries with a capacity of 30-200AH and is compatible with AGM, GEL, and SLI battery types. It also supports multiple battery testing standards, including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB, providing flexibility when testing batteries with different rating systems.
The diagnostic functions cover several important battery and vehicle parameters. Users can perform charging, load, and unloaded voltage tests, while the tester can also evaluate the starting and charging current inside the vehicle. In addition, it provides information on battery state of health, state of charge, and internal resistance.
A key feature of this model is its ability to print data by computer, making it particularly suitable for professional service environments where test results may need to be recorded, reviewed, or provided as a service report.
With an input voltage range of 7V-30V, the tester can be used across its specified 12V/24V vehicle system applications. Its combination of a wide 100-2000CCA testing range, multiple testing standards, battery condition analysis, vehicle system testing, and computer data printing gives it a more professional positioning than basic battery testers.
This model is suitable for automotive workshops, battery service centers, vehicle maintenance businesses, fleet service applications, and professional battery retailers.
Specifications
- Battery Voltage: 12V (12/24V vehicle system)
- Input Voltage Range: 7V~30V
- Testing Range: 100-2000CCA
- Battery Capacity: 30-200AH
- Test Standard: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
- Battery Type: AGM/GEL/SLI
- Test Result:
- Voltage: charging/load test/unloaded test
- Starting and charging current inside the vehicle
- State of health/state of charge
- Internal resistance of battery
- Data Output: Print data by computer
