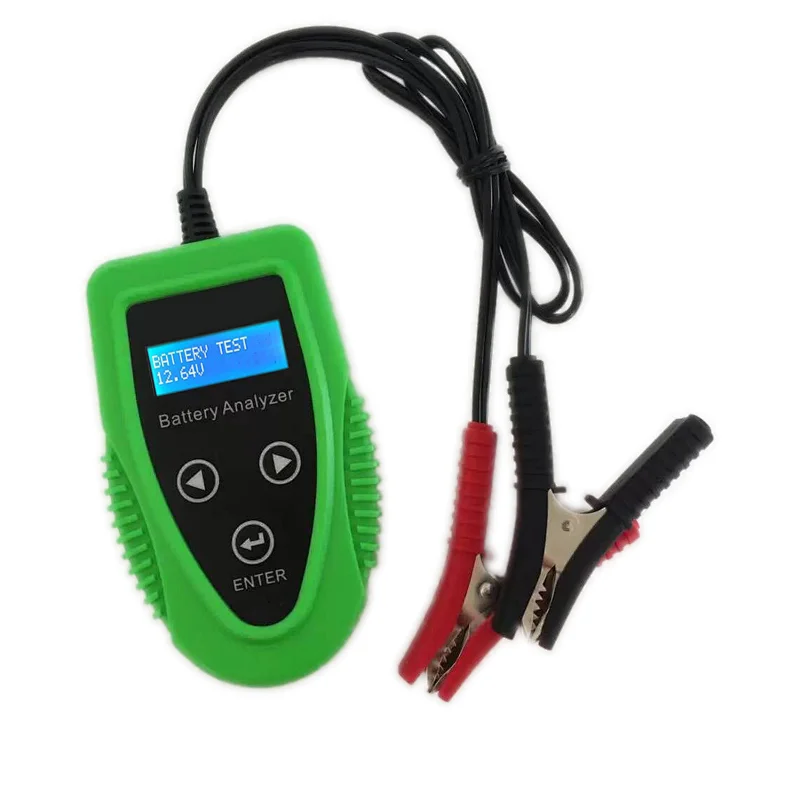

Battery tester

The Automotive Battery Diagnostic Tester for 20-1200 CCA is designed to provide multiple battery and vehicle electrical system test results for 6V and 12V automotive battery applications. Rather than providing only a basic voltage reading, this tester combines several diagnostic functions to help users evaluate battery condition and vehicle starting and charging performance.

The tester supports a testing range of 20-1200 CCA and is compatible with AGM, GEL, and SLI battery types. It is designed for 12V vehicle systems and operates within an input voltage range of 7-15V. The broad CCA testing range allows the unit to cover different battery applications within its specified operating range.

Test results include battery voltage under load and without load, starting and charging current inside the vehicle, state of health, and state of charge. The tester also measures the internal resistance of the battery, providing additional information for battery condition assessment.

This combination of battery testing and vehicle electrical system checks makes the model suitable for automotive workshops, battery service centers, battery distributors, automotive parts suppliers, and vehicle maintenance applications. For a B2B product range, its diagnostic-oriented positioning provides a clear alternative to conventional load testers.

Specifications

• Battery Voltage: 6/12V (12V vehicle system)
• Input Voltage Range: 7-15V
• Testing Range: 20-1200 CCA
• Battery Type: AGM / GEL / SLI
• Test Result:
  • Voltage: Load Test / Unloaded Test
  • Starting and Charging Current Inside the Vehicle
  • State of Health / State of Charge
  • Internal Resistance of Battery
