Battery tester

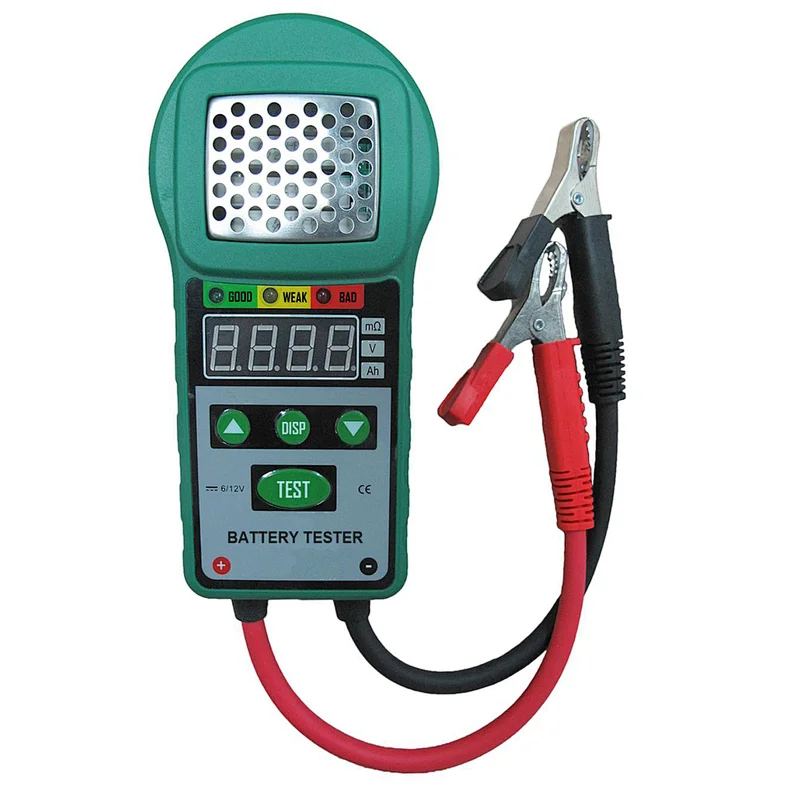

The 6V/12V Motorcycle Battery Load Tester 20A is designed specifically for testing motorcycle batteries and other small-capacity 6V and 12V battery applications. With a 20A load test current and support for batteries from 5-80Ah, this model provides a practical solution for motorcycle workshops, battery retailers, repair centers, and routine vehicle maintenance.

A built-in auto timer operates during the load test to help control the testing duration and prevent damage to the tester caused by excessive or prolonged loading. The automatic data hold function also helps retain test information for convenient viewing during the testing process.

The tester supports a 6V/12V battery voltage range and an input voltage range of 6-20V. It can perform voltage testing under load and without load, allowing users to observe battery voltage in different testing conditions. In addition, the unit measures the internal resistance of the battery, providing an additional reference for evaluating battery condition.

With its lower 20A load current and 5-80Ah battery capacity range, this model is better suited to motorcycle and small battery applications than higher-current load testers designed for larger automotive batteries. Its combination of motorcycle-oriented positioning, automatic timing, data hold, voltage testing, and internal resistance measurement gives it a distinct role within a battery testing product range.

Specifications

• Application: Motorcycle
• Built-in Auto Timer During Load Test: Helps prevent damage to tester
• Auto Data Hold: Yes
• Battery Voltage: 6V / 12V
• Input Voltage Range: 6-20V
• Load Test Current: 20A
• Battery Capacity: 5-80Ah
• Test Result:
  • Voltage: Load Test / Unloaded Test
  • Internal Resistance of Battery
